SCB14/18

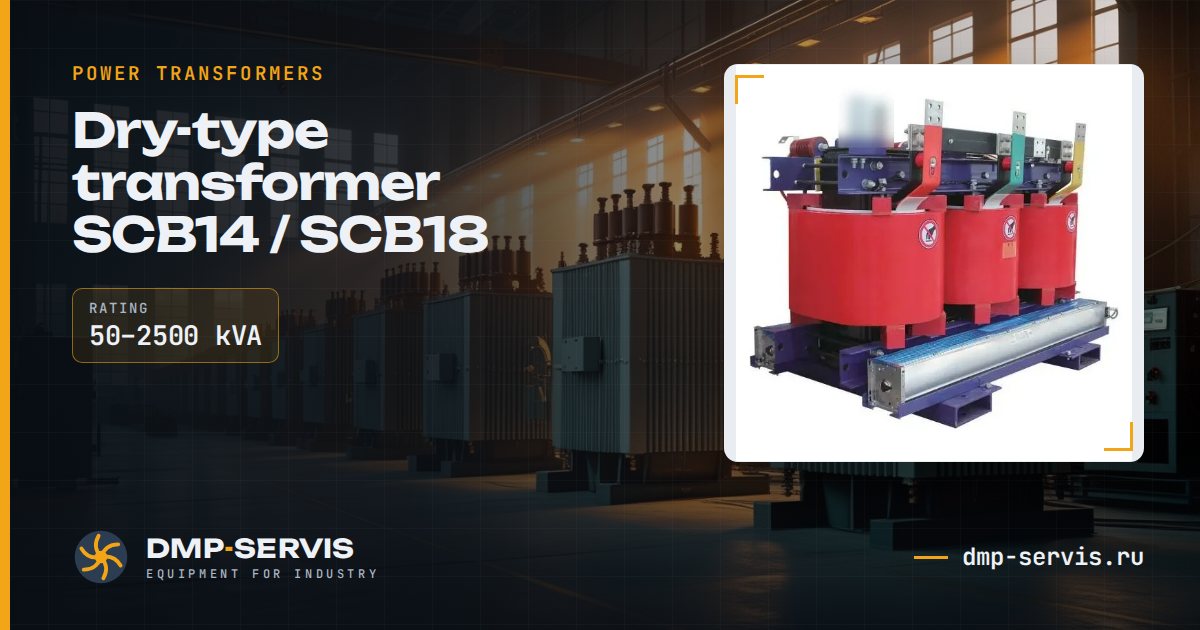

Dry-type transformer SCB14 / SCB18
Latest-generation dry-type transformers with minimum losses. For sites with high energy-efficiency and fire-safety requirements.
Main dataper the factory catalogue
- Series
- SCB14/18
- Voltage
- 10 (6) / 0.4 kV
- Rating
- 50–2 500 kVA
- Versions
- 17
- Tests
- factory acceptance tests
Choose rating, kVA
Price on requestDepends on winding material and loss requirements. Quoted delivered to site.Request a price
Design
- Cast epoxy insulation, thermal class F/H
- Copper or aluminium windings
- Temperature monitoring and fans on request (standard from 250 kVA)
- Protective enclosure IP20/IP23, including stainless steel
- No oil needed: can be installed in buildings and basements
Ratings
| Rating | Voltage | Windings | |
|---|---|---|---|
| 50 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 80 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 100 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 125 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 160 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 200 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 250 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 315 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 400 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 500 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 630 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 800 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 1 000 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 1 250 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 1 600 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 2 000 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
| 2 500 kVA | 10 (6) / 0.4 kV | copper / aluminium | request |
