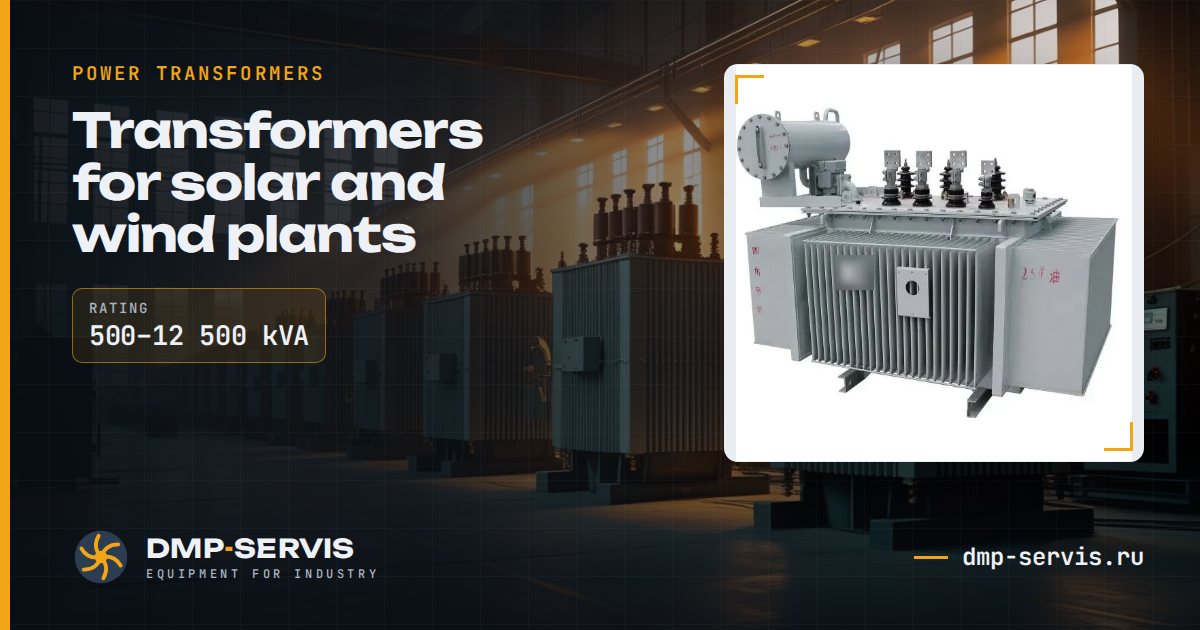

Transformers for solar and wind plants

Renewable energy

Transformers for solar and wind plants

Step-up transformers for solar and wind plants and energy storage systems: they raise inverter output voltage to 6, 10 or 35 kV. Designed for variable and intermittent generation. The dry-type design with non-combustible epoxy insulation eliminates the risk of oil leaks and fire.

Main dataper the factory catalogue

Series: Renewable energy
Voltage: 6–7.2; 10–12; 35–38.5 / 0.4–1.14 kV
Vector group: Dyn11 / YNd11
Impedance voltage: 4,0–14,0 %
Energy efficiency class: 1, 2 or 3 (GB 20052-2024)
Rating: 500–12 500 kVA
Versions: 18
Tests: factory acceptance tests

Choose rating, kVA

Price on requestDepends on winding material and loss requirements. Quoted delivered to site.Request a price

Design

Low voltage 0.4–1.14 kV to match inverters
Oil-immersed or dry-type
Three energy efficiency classes per GB 20052-2024
Operates in high heat, humidity and dust

Specifications

Oil-immersed 10–12 kV

Rating, kVA	No-load losses, class 1, kW	No-load losses, class 2, kW	No-load losses, class 3, kW	Load losses, class 1, kW	Load losses, class 2, kW	Load losses, class 3, kW	Uk, %
500	0,39	0,43	0,48	3,9	4,33	5,41	4,0–8,0	request
630	0,46	0,51	0,57	4,46	4,96	6,2	4,0–8,0	request
800	0,56	0,63	0,7	5,4	6	7,5	4,0–8,0	request
1 000	0,67	0,74	0,83	7,42	8,24	10,3	4,0–8,0	request
1 250	0,78	0,87	0,97	8,64	9,6	12	4,0–8,0	request
1 600	0,94	1,05	1,17	10,44	11,6	14,5	4,0–8,0	request
2 000	1,08	1,23	1,36	13,18	14,64	18,3	4,0–8,0	request
2 500	1,28	1,44	1,6	15,27	16,96	21,2	4,0–8,0	request
3 000	1,55	1,72	1,91	16,8	18,66	23,33	4,0–8,0	request
3 150	1,61	1,78	1,98	17,98	19,98	24,97	4,0–8,0	request

Data from the partner factory's catalogue.

Oil-immersed 6–7.2 kV

Rating, kVA	No-load losses, class 1, kW	No-load losses, class 2, kW	No-load losses, class 3, kW	Load losses, class 1, kW	Load losses, class 2, kW	Load losses, class 3, kW	Uk, %
500	0,39	0,43	0,48	3,9	4,33	5,41	4,0–8,0	request
630	0,46	0,51	0,57	4,46	4,96	6,2	4,0–8,0	request
800	0,56	0,63	0,7	5,4	6	7,5	4,0–8,0	request
1 000	0,67	0,74	0,83	7,42	8,24	10,3	4,0–8,0	request
1 250	0,78	0,87	0,97	8,64	9,6	12	4,0–8,0	request
1 600	0,94	1,05	1,17	10,44	11,6	14,5	4,0–8,0	request
2 000	1,08	1,23	1,36	13,18	14,64	18,3	4,0–8,0	request

Data from the partner factory's catalogue.

Oil-immersed 35 kV

Rating, kVA	No-load losses, class 1, kW	No-load losses, class 2, kW	No-load losses, class 3, kW	Load losses, class 1, kW	Load losses, class 2, kW	Load losses, class 3, kW	Uk, %
1 000	0,6	0,8	0,9	10,4	10,4	10,9	6,0–14,0	request
1 250	0,8	0,9	1,1	12,5	12,5	13,2	6,0–14,0	request
1 600	0,9	1,1	1,3	14,9	14,9	15,8	6,0–14,0	request
2 000	1,2	1,4	1,5	16,5	16,5	17,4	6,0–14,0	request
2 500	1,4	1,7	1,8	17,6	17,6	19,6	6,0–14,0	request
3 000	1,6	1,9	2,1	20,3	20,3	22,5	6,0–14,0	request
3 150	1,7	2	2,2	20,7	20,7	23	6,0–14,0	request
4 000	2	2,3	2,6	24,6	24,6	27,3	6,0–14,0	request
4 500	2,2	2,6	3	27,1	27,1	30,1	6,0–14,0	request
5 000	2,4	2,8	3,2	28,2	28,2	31,3	6,0–14,0	request
5 500	2,6	3	3,5	30,3	30,3	33,6	6,0–14,0	request
6 300	2,9	3,4	3,8	31,5	31,5	35	6,0–14,0	request
8 000	4	4,7	5,2	34,6	34,6	38,1	6,0–14,0	request
10 000	4,8	5,7	6,3	40,8	40,8	45,3	6,0–14,0	request
12 500	5,6	6,5	7,2	50,7	50,7	56,3	6,0–14,0	request

Data from the partner factory's catalogue.

Dry-type 10–12 kV

Rating, kVA	No-load losses, class 1, kW	No-load losses, class 2, kW	No-load losses, class 3, kW	Load losses, class 1, kW	Load losses, class 2, kW	Load losses, class 3, kW	Uk, %
500	0,67	0,79	0,93	4,39	4,39	4,88	4,0–10,0	request
630	0,78	0,91	1,07	5,29	5,29	5,88	4,0–10,0	request
800	0,88	1,03	1,22	6,26	6,26	6,96	4,0–10,0	request
1 000	1,02	1,21	1,42	7,32	7,32	8,13	4,0–10,0	request
1 250	1,21	1,42	1,67	8,72	8,72	9,69	4,0–10,0	request
1 600	1,42	1,67	1,96	10,55	10,55	11,73	4,0–10,0	request
2 000	1,76	2,08	2,44	13,01	13,01	14,45	4,0–10,0	request
2 500	2,08	2,45	2,88	15,45	15,45	17,17	4,0–10,0	request
3 150	2,52	2,96	3,49	19,09	19,09	21,22	4,0–10,0	request

Data from the partner factory's catalogue.

Dry-type 6–7.2 kV

Rating, kVA	No-load losses, class 1, kW	No-load losses, class 2, kW	No-load losses, class 3, kW	Load losses, class 1, kW	Load losses, class 2, kW	Load losses, class 3, kW	Uk, %
500	0,67	0,79	0,93	4,39	4,39	4,88	4,0–10,0	request
630	0,78	0,91	1,07	5,29	5,29	5,88	4,0–10,0	request
800	0,88	1,03	1,22	6,26	6,26	6,96	4,0–10,0	request
1 000	1,02	1,21	1,42	7,32	7,32	8,13	4,0–10,0	request
1 250	1,21	1,42	1,67	8,72	8,72	9,69	4,0–10,0	request
1 600	1,42	1,67	1,96	10,55	10,55	11,73	4,0–10,0	request
2 000	1,76	2,08	2,44	13,01	13,01	14,45	4,0–10,0	request

Data from the partner factory's catalogue.

Dry-type 35 kV

Rating, kVA	No-load losses, class 1, kW	No-load losses, class 2, kW	No-load losses, class 3, kW	Load losses, class 1, kW	Load losses, class 2, kW	Load losses, class 3, kW	Uk, %
1 000	1,4	1,6	1,7	9,4	9,4	10,4	6,0–14,0	request
1 250	1,6	1,8	2	11,4	11,4	12,7	6,0–14,0	request
1 600	1,9	2,1	2,3	13,9	13,9	15,4	6,0–14,0	request
2 000	2,2	2,5	2,7	16,4	16,4	18,2	6,0–14,0	request
2 500	2,6	2,9	3,2	19,6	19,6	21,8	6,0–14,0	request
3 000	3,2	3,5	3,9	21,6	21,6	24	6,0–14,0	request
3 150	3,5	3,9	4,3	22,1	22,1	24,5	6,0–14,0	request
4 000	4,1	4,5	5	26,5	26,5	29,4	6,0–14,0	request
4 500	4,4	4,9	5,4	29,1	29,1	32,3	6,0–14,0	request
5 000	4,8	5,4	6	31,4	31,4	34,9	6,0–14,0	request
6 300	5,7	6,4	7,1	36,7	36,7	40,8	6,0–14,0	request
8 000	6,9	7,6	8,5	44,3	44,3	49,2	6,0–14,0	request
10 000	8,2	9,1	10,2	52,1	52,1	57,9	6,0–14,0	request

Data from the partner factory's catalogue.
