S11-35

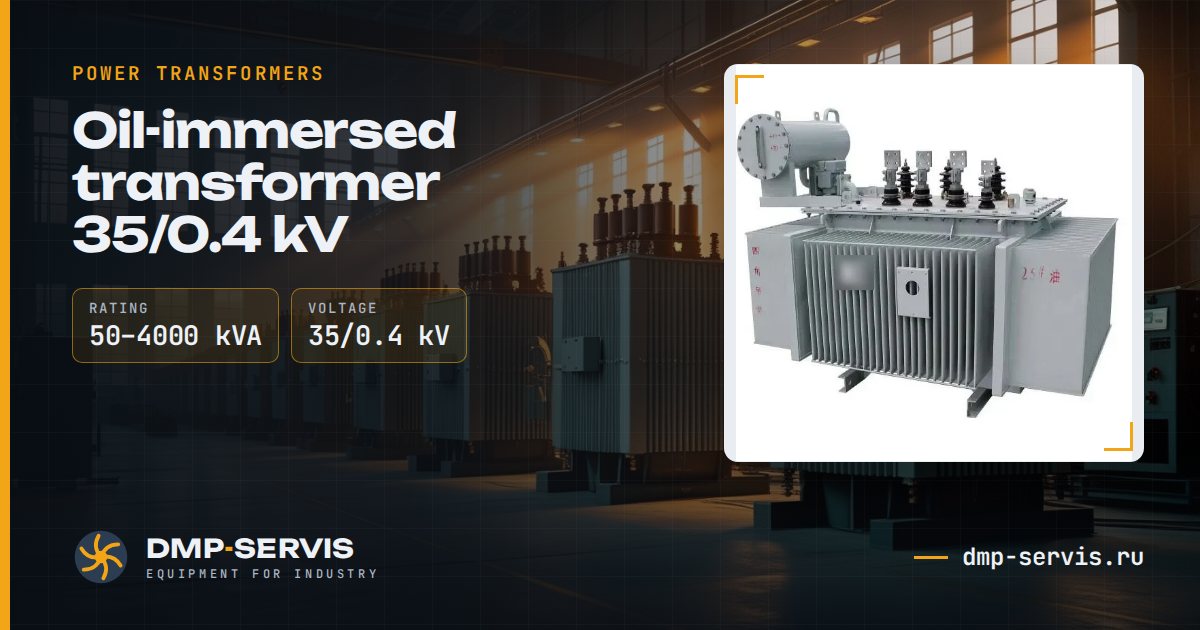

Oil-immersed transformer 35/0.4 kV
35 kV class power transformers for industrial sites, open-pit mines and remote facilities where it pays to step down the voltage in one stage.
Main dataper the factory catalogue
- Series
- S11-35
- Voltage
- 35 / 0.4 kV (also 35/10, 35/6 kV)
- Rating
- 50–4 000 kVA
- Versions
- 19
- Tests
- factory acceptance tests
Choose rating, kVA
Price on requestDepends on winding material and loss requirements. Quoted delivered to site.Request a price
Design
- Windings: copper or aluminium — customer's choice
- Vector group Y/Yn-0 or D/Yn-11
- Hermetically sealed (corrugated) tank or design with conservator
- Off-circuit tap changer ±2×2.5 %
- Cooling ONAN (natural oil)
Ratings
| Rating | Voltage | Windings | |
|---|---|---|---|
| 50 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 80 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 100 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 125 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 160 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 200 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 250 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 315 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 400 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 500 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 630 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 800 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 1 000 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 1 250 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 1 600 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 2 000 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 2 500 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 3 150 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
| 4 000 kVA | 35 / 0.4 kV (also 35/10, 35/6 kV) | copper / aluminium | request |
