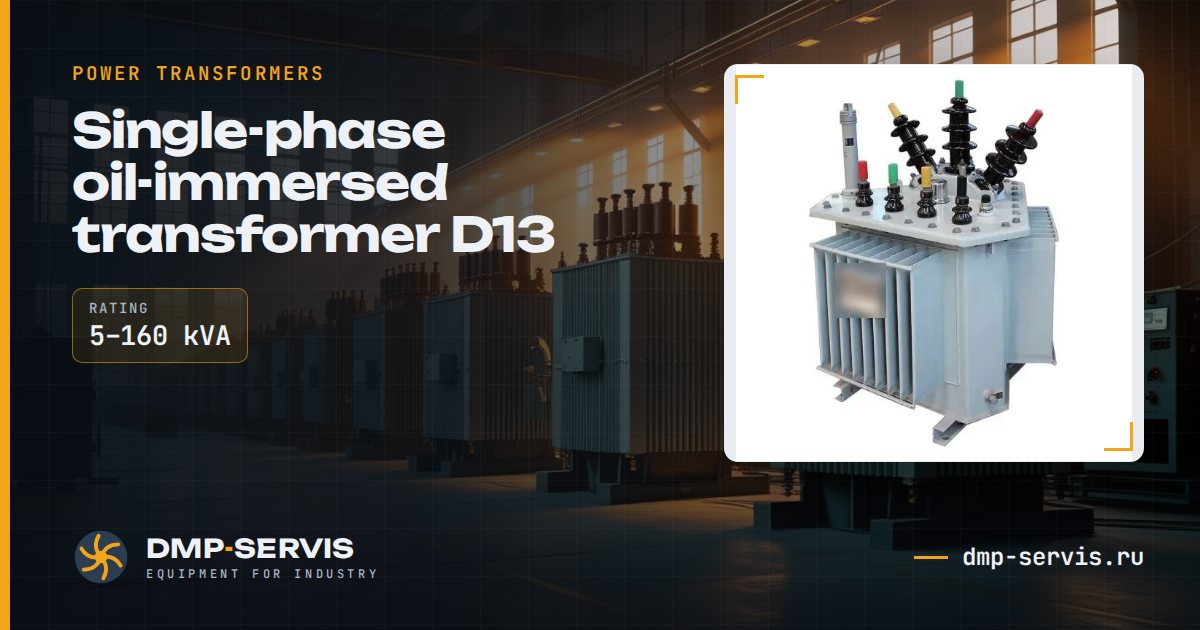

Single-phase oil-immersed transformer D13
A small, light single-phase transformer that can be installed right next to the load, shortening the 0.4 kV network and cutting its losses. It helps relieve an overloaded three-phase transformer by moving part of the single-phase load to a separate branch. Fully sealed and maintenance-free.
Main dataper the factory catalogue
- Series
- D13
- Voltage
- 6; 6.3; 10; 10.5; 11 / 0.22–0.24 kV
- Vector group
- Ii0 / Ii6
- Impedance voltage
- 3,5 %
- Rating
- 5–160 kVA
- Versions
- 12
- Tests
- factory acceptance tests
Choose rating, kVA
Price on requestDepends on winding material and loss requirements. Quoted delivered to site.Request a price
Design
- Fully sealed design
- Maintenance-free
- Pole or pad mounting
- Rating from 5 to 160 kVA
Specifications
| Rating, kVA | No-load losses, W | Load losses, W | Uk, % | |
|---|---|---|---|---|
| 5 | 24 | 130 | 3,5 | request |
| 10 | 36 | 235 | 3,5 | request |
| 16 | 44 | 330 | 3,5 | request |
| 20 | 52 | 385 | 3,5 | request |
| 30 | 64 | 560 | 3,5 | request |
| 40 | 80 | 700 | 3,5 | request |
| 50 | 96 | 855 | 3,5 | request |
| 63 | 116 | 1 020 | 3,5 | request |
| 80 | 128 | 1 260 | 3,5 | request |
| 100 | 152 | 1 485 | 3,5 | request |
| 125 | 184 | 1 755 | 3,5 | request |
| 160 | 232 | 2 130 | 3,5 | request |
Data from the partner factory's catalogue.
