110 kV, on-load tap changer

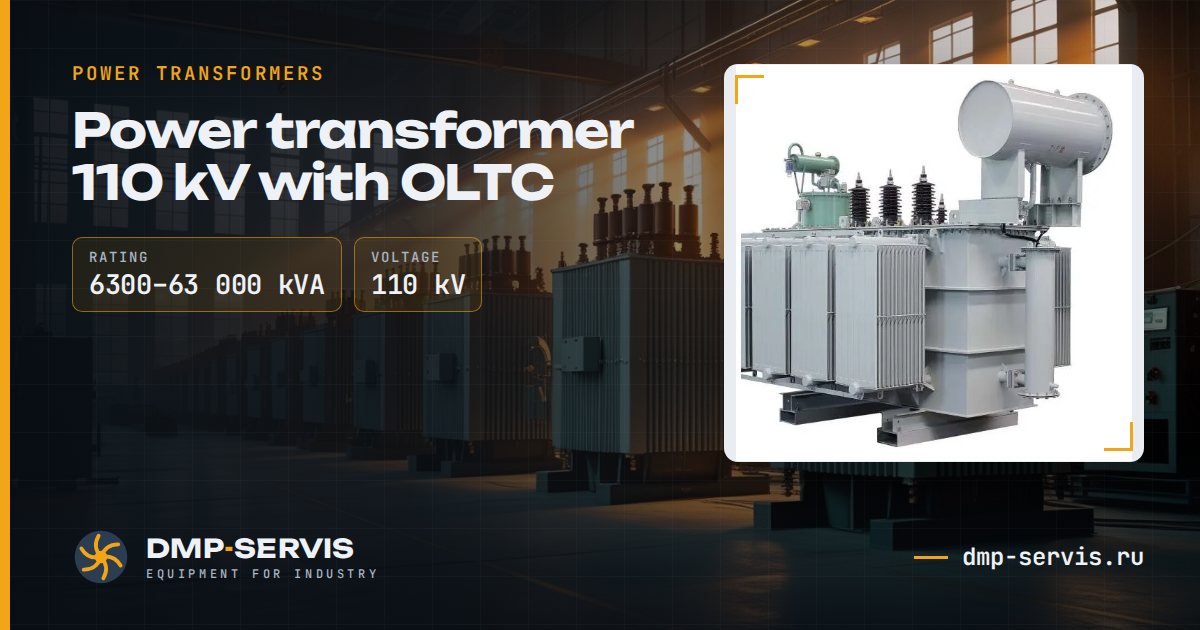

Power transformer 110 kV with OLTC
110 kV oil-immersed transformer with an on-load tap changer: it regulates voltage under load without disconnection and keeps it stable when the network fluctuates. Suited to networks with frequent voltage fluctuations and sharp load changes.
Main dataper the factory catalogue
- Series
- 110 kV, on-load tap changer
- Voltage
- 110 / 6.3; 6.6; 10.5; 21 kV
- Vector group
- YNd11
- Impedance voltage
- 10,5–18 %
- Rating
- 6 300–63 000 kVA
- Versions
- 11
- Tests
- factory acceptance tests
Choose rating, kVA
Price on requestDepends on winding material and loss requirements. Quoted delivered to site.Request a price
Design
- OLTC: ±4×1.25, ±6×1.25 or ±8×1.25 %
- Low voltage up to 21 kV
- Built to your questionnaire
Specifications
| Rating, kVA | Tapping range, % | No-load current, % | No-load losses, kW | Load losses, kW | Uk, % | |
|---|---|---|---|---|---|---|
| 6 300 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,51 | 4,4 | 32 | 10,5 | request |
| 8 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,51 | 5,3 | 38 | 10,5 | request |
| 10 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,47 | 6,2 | 45 | 10,5 | request |
| 12 500 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,47 | 7,4 | 53 | 10,5 | request |
| 16 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,44 | 8,9 | 66 | 10,5 | request |
| 20 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,44 | 10,6 | 79 | 10,5 | request |
| 25 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,41 | 12,5 | 94 | 10,5 | request |
| 31 500 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,41 | 14,9 | 111 | 10,5 | request |
| 40 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,37 | 17,8 | 140 | 10,5–18 | request |
| 50 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,37 | 21 | 175 | 10,5–18 | request |
| 63 000 | ±4×1,25 / ±6×1,25 / ±8×1,25 | 0,34 | 25 | 209 | 10,5–18 | request |
Data from the partner factory's catalogue.
