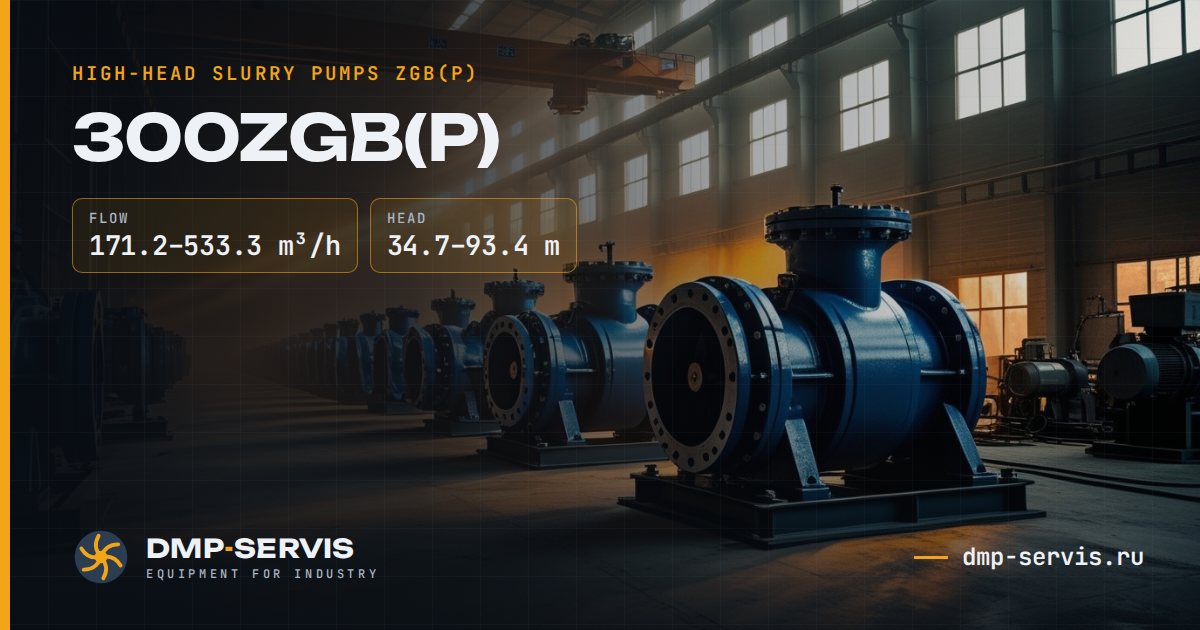

ZGB(P)photo on request
Series photo. Appearance and paint of a specific model — to order.
High-head slurry pumps ZGB(P)
Pump 300ZGB(P)
High head at medium and low concentration; (P) versions have 3–4 stages in series.
Technical dataper the factory catalogue
- Model
- 300ZGB(P)
- Series
- High-head slurry pumps ZGB(P)
- Flow Q
- 171.2–533.3 m³/h
- Head H
- 34.7–93.4 m
- Speed
- 740–980 rpm
- Discharge outlet
- DN 300
- Wet end
- metal
Price on requestQuoted ex works (EXW) and delivered to site, manufacturing from 30 daysRequest a price
Other models in the series
65ZGBdischarge outlet DN 65
High-head slurry pumps ZGB(P)
Pump 65ZGB
- Q, m³/h
- 10,5–31,7
- H, m
- 25,4–61
- n, rpm
- 980–1480
80ZGBdischarge outlet DN 80
High-head slurry pumps ZGB(P)
Pump 80ZGB
- Q, m³/h
- 15,3–56,7
- H, m
- 25,6–91,6
- n, rpm
- 980–1480
100ZGBdischarge outlet DN 100
High-head slurry pumps ZGB(P)
Pump 100ZGB
- Q, m³/h
- 30,9–119,7
- H, m
- 23,9–91,8
- n, rpm
- 980–1480
150ZGBdischarge outlet DN 150
High-head slurry pumps ZGB(P)
Pump 150ZGB
- Q, m³/h
- 64,8–200
- H, m
- 35,2–90
- n, rpm
- 740–980
