ZGB(P)photo on request
Series photo. Appearance and paint of a specific model — to order.

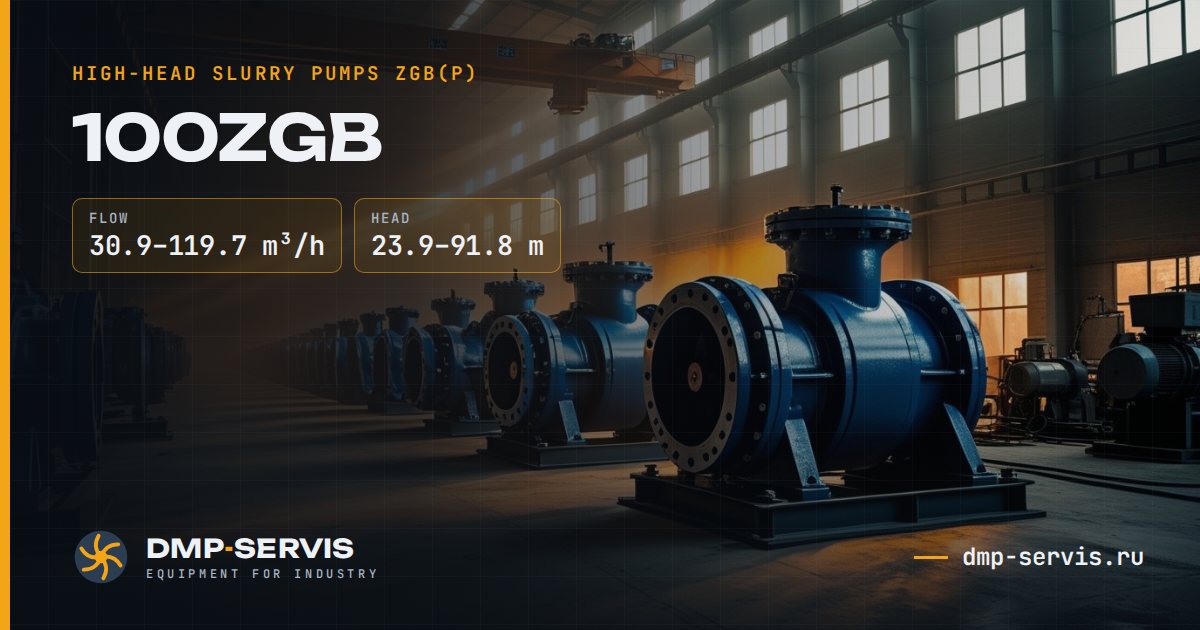

High-head slurry pumps ZGB(P)
Pump 100ZGB
High head at medium and low concentration; (P) versions have 3–4 stages in series.
Technical dataper the factory catalogue
- Model
- 100ZGB
- Series
- High-head slurry pumps ZGB(P)
- Flow Q
- 30.9–119.7 m³/h
- Head H
- 23.9–91.8 m
- Speed
- 980–1480 rpm
- Discharge outlet
- DN 100
- Wet end
- metal
Price on requestQuoted ex works (EXW) and delivered to site, manufacturing from 30 daysRequest a price
Other models in the series
65ZGBdischarge outlet DN 65
High-head slurry pumps ZGB(P)
Pump 65ZGB
- Q, m³/h
- 10,5–31,7
- H, m
- 25,4–61
- n, rpm
- 980–1480
80ZGBdischarge outlet DN 80
High-head slurry pumps ZGB(P)
Pump 80ZGB
- Q, m³/h
- 15,3–56,7
- H, m
- 25,6–91,6
- n, rpm
- 980–1480
150ZGBdischarge outlet DN 150
High-head slurry pumps ZGB(P)
Pump 150ZGB
- Q, m³/h
- 64,8–200
- H, m
- 35,2–90
- n, rpm
- 740–980
200ZGB(P)discharge outlet DN 200
High-head slurry pumps ZGB(P)
Pump 200ZGB(P)
- Q, m³/h
- 97,9–300
- H, m
- 38–94,2
- n, rpm
- 740–980
