SCB-35

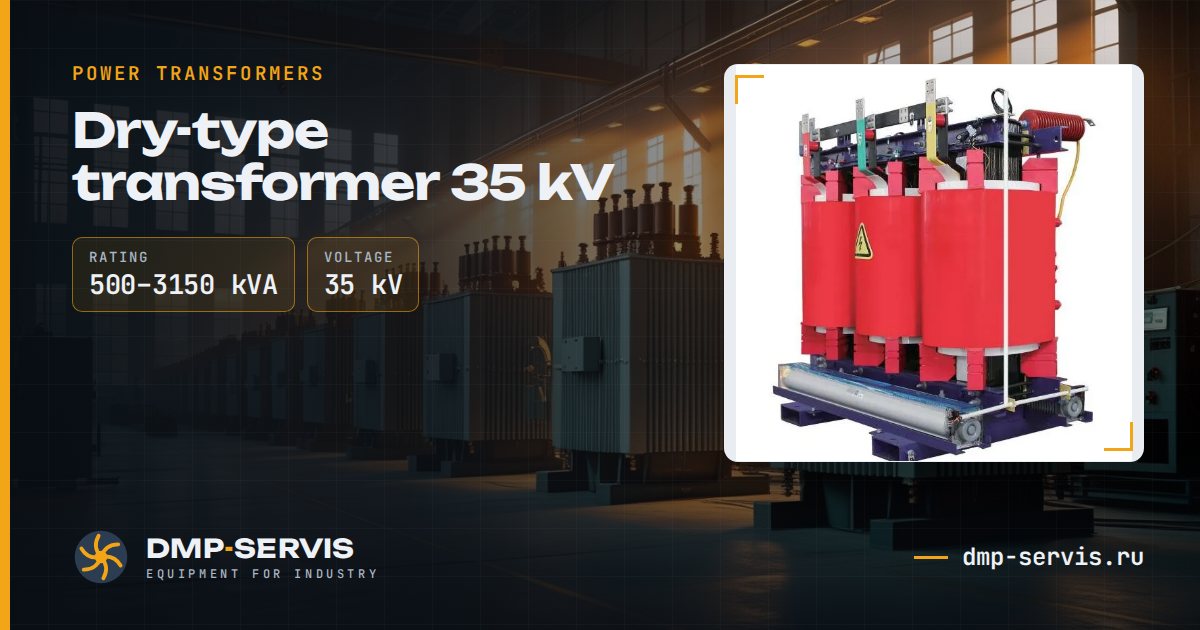

Dry-type transformer 35 kV
35 kV class dry-type transformers for indoor installation where an oil-immersed transformer is prohibited or undesirable.
Main dataper the factory catalogue
- Series
- SCB-35
- Voltage
- 35 / 0.4; 35 / 10 kV
- Rating
- 500–3 150 kVA
- Versions
- 8
- Tests
- factory acceptance tests
Choose rating, kVA
Price on requestDepends on winding material and loss requirements. Quoted delivered to site.Request a price
Design
- Cast epoxy insulation, thermal class F/H
- Copper or aluminium windings
- Temperature monitoring and fans on request (standard from 250 kVA)
- Protective enclosure IP20/IP23, including stainless steel
- No oil needed: can be installed in buildings and basements
Ratings
| Rating | Voltage | Windings | |
|---|---|---|---|
| 500 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 800 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 1 000 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 1 250 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 1 600 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 2 000 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 2 500 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
| 3 150 kVA | 35 / 0.4; 35 / 10 kV | copper / aluminium | request |
