Series photo. Appearance and paint of a specific model — to order.
Light- and medium-duty slurry pumps

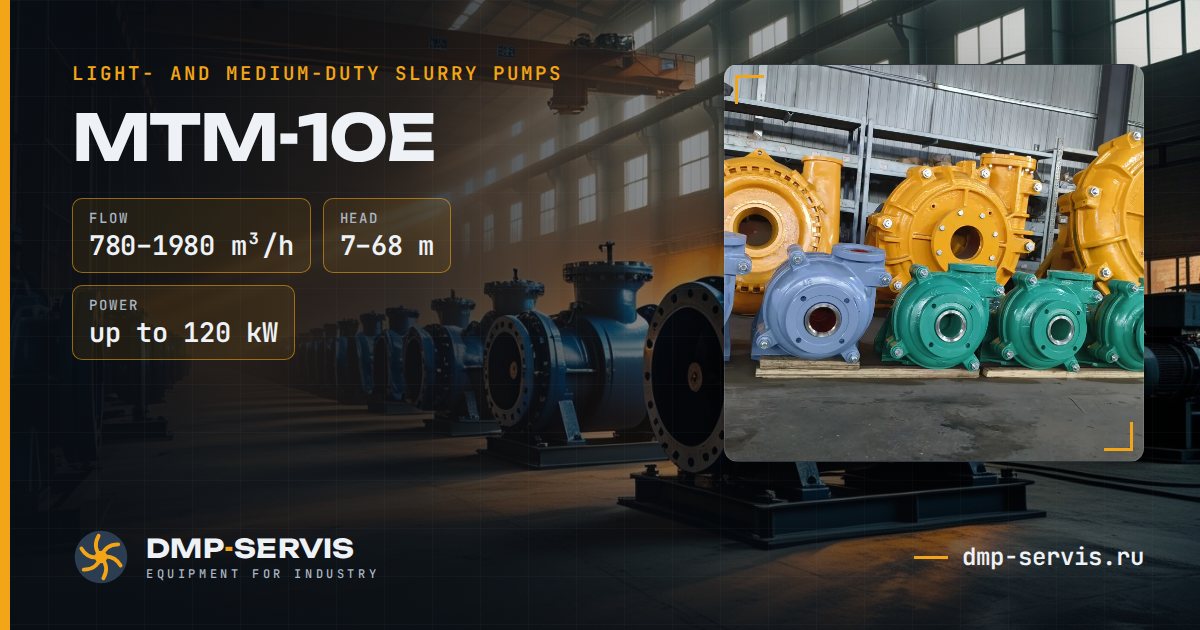

Pump MTM-10E
High flow rates at low concentration and moderate head; RTL has rubber lining, MTM is the medium-duty series.
Technical dataper the factory catalogue
- Model
- MTM-10E
- Series
- Light- and medium-duty slurry pumps
- Flow Q
- 780–1980 m³/h
- Head H
- 7–68 m
- Motor power
- up to 120 kW
- Speed
- 300–800 rpm
- Wet end
- metal
Price on requestQuoted ex works (EXW) and delivered to site, manufacturing from 30 daysRequest a price
Other models in the series
MTL-20BMTL / MTM / RTL
Light- and medium-duty slurry pumps
Pump MTL-20B
- Q, m³/h
- 2,34–10,8
- H, m
- 6–37
- P, kW
- up to 7.5
- n, rpm
- 1400–3000
MTL-50BMTL / MTM / RTL
Light- and medium-duty slurry pumps
Pump MTL-50B
- Q, m³/h
- 11,5–76
- H, m
- 8,5–46
- P, kW
- up to 15
- n, rpm
- 1400–2800
MTL-75CMTL / MTM / RTL
Light- and medium-duty slurry pumps
Pump MTL-75C
- Q, m³/h
- 18–151
- H, m
- 4–46,4
- P, kW
- up to 30
- n, rpm
- 900–2400
MTL-100DMTL / MTM / RTL
Light- and medium-duty slurry pumps
Pump MTL-100D
- Q, m³/h
- 46,8–324
- H, m
- 7–48,3
- P, kW
- up to 60
- n, rpm
- 800–1800
