Series photo. Appearance and paint of a specific model — to order.
Submersible slurry pumps

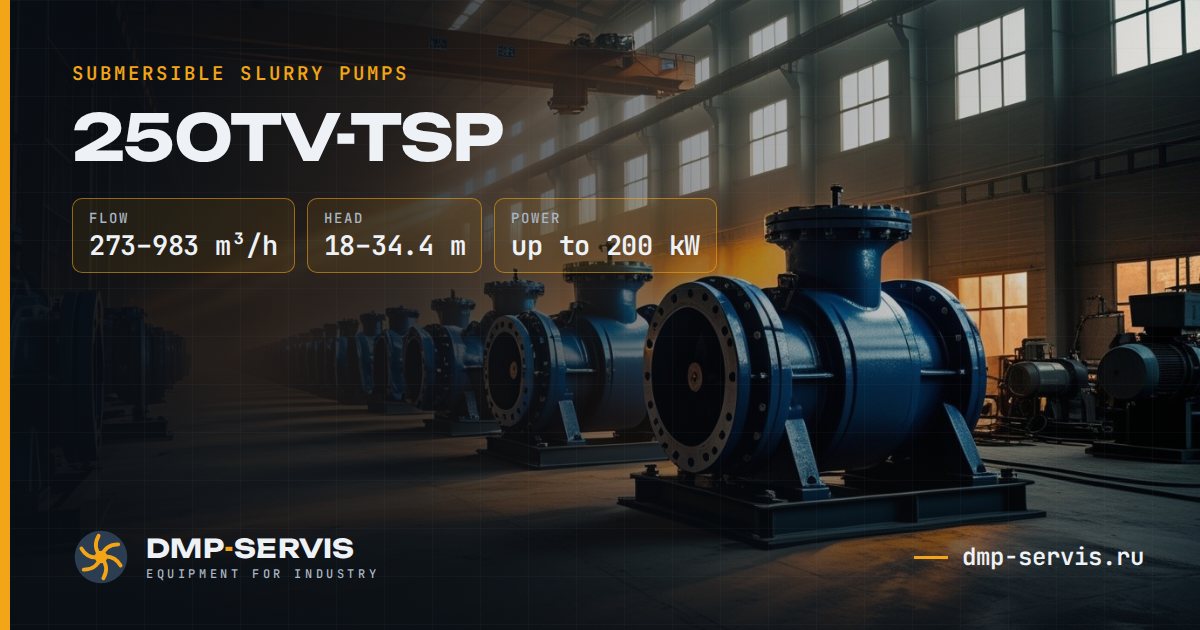

Pump 250TV-TSP
Pump and electric motor in one housing: lowered straight into the slurry, including on an excavator boom.
Technical dataper the factory catalogue
- Model
- 250TV-TSP
- Series
- Submersible slurry pumps
- Flow Q
- 273–983 m³/h
- Head H
- 18–34.4 m
- Motor power
- up to 200 kW
- Wet end
- high-chrome iron / rubber
Price on requestQuoted ex works (EXW) and delivered to site, manufacturing from 30 daysRequest a price
