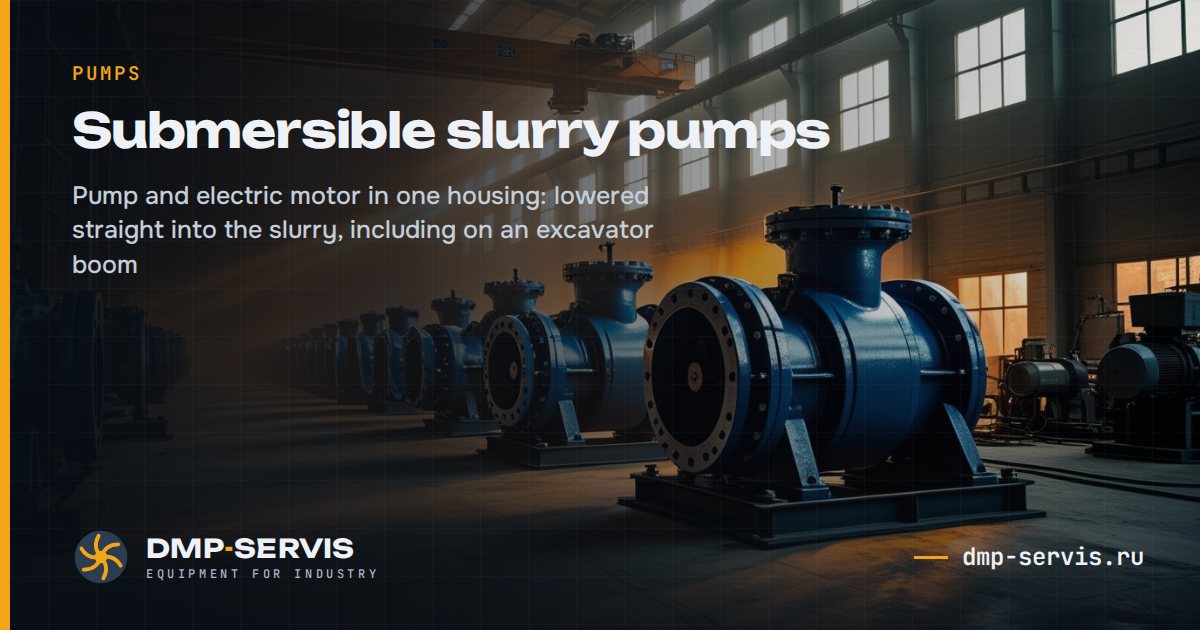

Submersible slurry pumps
Single-stage submersible pumps with an agitator: the agitator lifts the sediment and the pump takes it away with the water. They work where an ordinary pump clogs: cleaning settling ponds, quarries, sand filling.
Applications
- cleaning settling ponds and storage ponds
- quarries and sand filling
- emergency pumping
Design
- Agitator to lift sediment
- Mounted on a cable or an excavator boom
- Power up to 200 kW
Models and specifications
40PV-TSPTSP
Submersible slurry pumps
Pump 40PV-TSP
- Q, m³/h
- 9,72–43,2
- H, m
- 8,2–28
- P, kW
- up to 15
65QV-TSPTSP
Submersible slurry pumps
Pump 65QV-TSP
- Q, m³/h
- 26–100
- H, m
- 9,8–29,2
- P, kW
- up to 30
100RV-TSPTSP
Submersible slurry pumps
Pump 100RV-TSP
- Q, m³/h
- 82,4–373
- H, m
- 17,4–49
- P, kW
- up to 75
150SV-TSPTSP
Submersible slurry pumps
Pump 150SV-TSP
- Q, m³/h
- 140–632
- H, m
- 13,5–36,3
- P, kW
- up to 110
200SV-TSPTSP
Submersible slurry pumps
Pump 200SV-TSP
- Q, m³/h
- 328–812
- H, m
- 22,9–37
- P, kW
- up to 110
250TV-TSPTSP
Submersible slurry pumps
Pump 250TV-TSP
- Q, m³/h
- 273–983
- H, m
- 18–34,4
- P, kW
- up to 200
300TV-TSPTSP
Submersible slurry pumps
Pump 300TV-TSP
- Q, m³/h
- 484–1432
- H, m
- 15–30
- P, kW
- up to 200
Flow and head ranges are from the factory catalogue for various speeds and impeller diameters. We select the exact duty point from your data.
