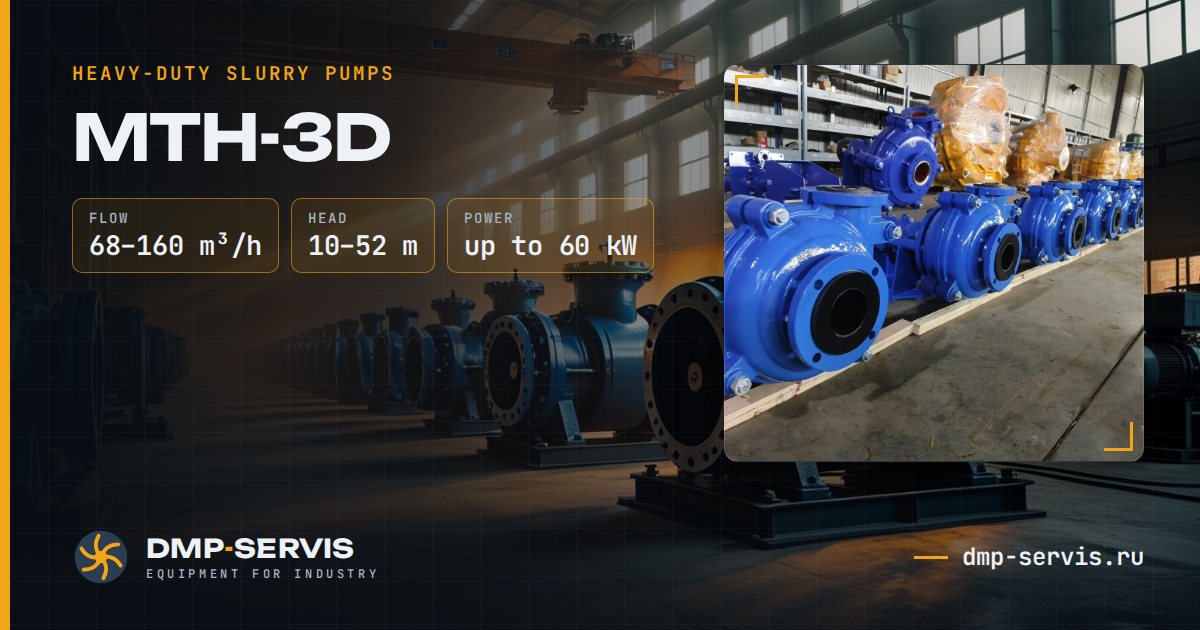

Series photo. Appearance and paint of a specific model — to order.
Heavy-duty slurry pumps
Pump MTH-3D
Horizontal cantilever pumps for abrasive slurries of high concentration and high head.
Technical dataper the factory catalogue
- Model
- MTH-3D
- Series
- Heavy-duty slurry pumps
- Flow Q
- 68–160 m³/h
- Head H
- 10–52 m
- Motor power
- up to 60 kW
- Speed
- 1000–2200 rpm
- Size (equivalent)
- 4/3D
- Wet end
- high-chrome iron / rubber
Price on requestQuoted ex works (EXW) and delivered to site, manufacturing from 30 daysRequest a price
Other models in the series
MTH-1Bsize 1.5/1B
Heavy-duty slurry pumps
Pump MTH-1B
- Q, m³/h
- 3,6–20
- H, m
- 5–68
- P, kW
- up to 15
- n, rpm
- 1200–3800
MTH-1.5Bsize 2/1.5B
Heavy-duty slurry pumps
Pump MTH-1.5B
- Q, m³/h
- 7–48
- H, m
- 7–62
- P, kW
- up to 15
- n, rpm
- 1200–3200
MTH-2Csize 3/2C
Heavy-duty slurry pumps
Pump MTH-2C
- Q, m³/h
- 21–86
- H, m
- 12–65
- P, kW
- up to 30
- n, rpm
- 1300–2700
MTH-3Csize 4/3C
Heavy-duty slurry pumps
Pump MTH-3C
- Q, m³/h
- 50–150
- H, m
- 9–45
- P, kW
- up to 30
- n, rpm
- 1000–2000
